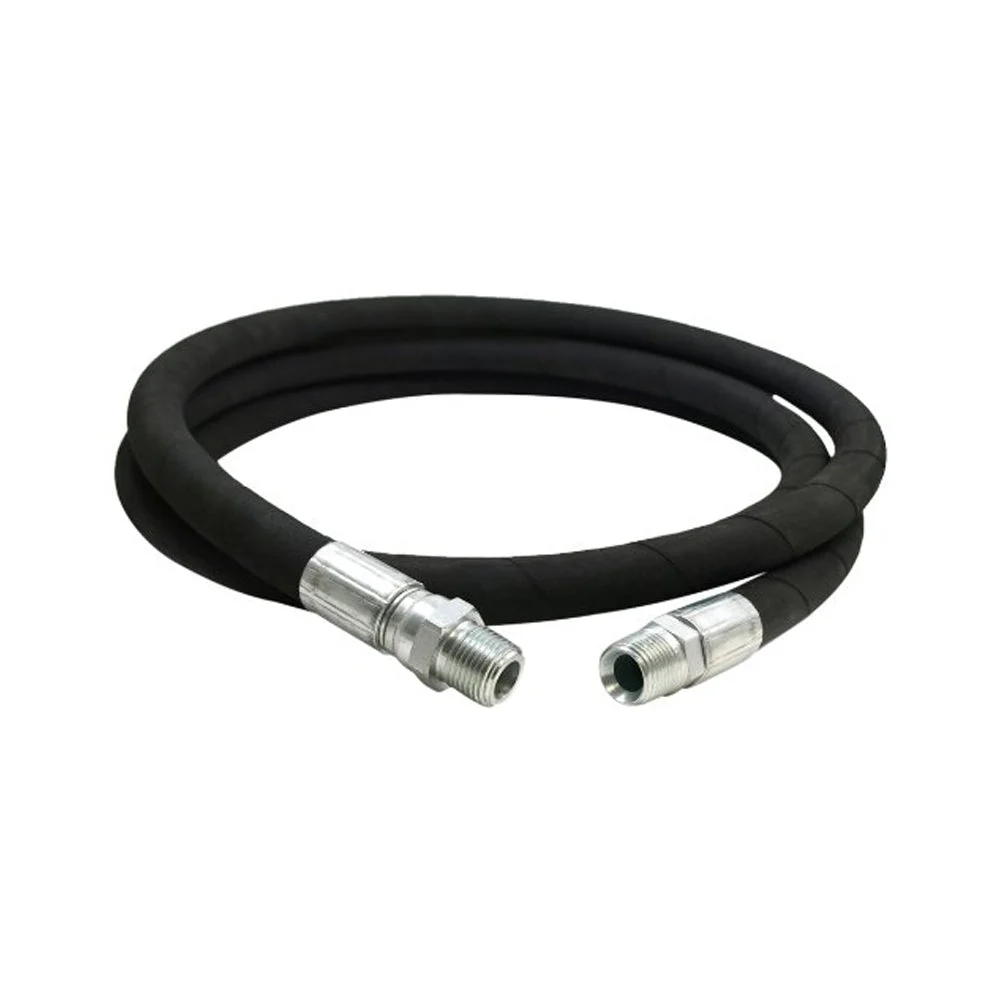

Add some strength and stability to your application with the Apache 98398625 1/2 Inch x 96 Inch Hydraulic Hose Assembly.
This premium hydraulic tube is made from premium black oil-resistant synthetic rubber to ensure long life and reliability. Each hose is coiled and sleeved for easy storage and labeled with size and specification for easy identification.
It’s designed for use with petroleum and water-based hydraulic fluids. This hose is capable of handling liquids such as gasoline, diesel fuels, mineral oils, glycol, lubricating oils, and more. This lightweight fittings hose is reinforced by 2 steel braids for superior strength and durability. Rest ensured that this hose is capable of handling all your heavy-duty transfer tasks. This return hose has a 1/2-inch pipe thread, 96-inch hose length, and maximum PSI of 3500. Each hose meets SAE 100R2AT standards.
Complete the toughest projects with the Apache 98398625 1/2 Inch x 96 Inch Hydraulic Hose Assembly.
- Tubing is made from premium black oil-resistant synthetic rubber to ensure long life and reliability
- Each hose is coiled and sleeved for easy storage and labeled with size and specification for easy identification
- Designed for use with petroleum and water-based hydraulic fluids
- Can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils, and more
- Reinforced by 2 steel braids for superior strength and durability
- 1/2-inch pipe thread, 120-inch hose length, and maximum PSI of 3500
- Assemblies meet SAE 100R2AT standards
- Inside diameter: 0.50 inch
- Inside diameter: 12.7 mm
- Outside diameter: 0.88 inches
- Outside diameter: 22.3 mm
- Maximum PSI: 3500
- Minimum bend radius: 7.09 inches
- Fittings: Male pipe thread x male swivel
- Temperature range: -40 to 212 degrees Fahrenheit
- Cover material: SBR/CR/BR
- Tube material: NBR
- Reinforcement 2 steel braids
- Color: Black
- Weight: 3.62 pounds
- Manufacturer warranty: 30-day limited warranty
Questions? We’ve Got Answers.
Helpful answers about product features, setup, and more
What is the male swivel constructed from?
The male swivel is constructed from steel. This material choice supports everyday use while maintaining the structural integrity needed for the product’s intended applications.
Does the male swivel come with a warranty?
Yes. The male swivel is backed by a limited manufacturer warranty. Coverage details and claim procedures are provided by the manufacturer; retain your order receipt as proof of purchase if you ever need to file a claim.
What is the best way to maintain the male swivel?
Wipe with a damp cloth and dry thoroughly to prevent rust. For powder-coated finishes, avoid abrasive cleaners that may scratch the coating. Regular light cleaning extends the lifespan of the male swivel and keeps it looking and performing well over time.
Who makes the male swivel?
The male swivel is made by Apache. Apache produces this item as part of its lineup, and product details such as specifications, included accessories, and warranty terms are set by the brand.
How much does the male swivel weigh?
The male swivel weighs approximately 3.62 pounds. Use this figure when planning transport, handling, or placement of the item.
What should I know about the male swivel before buying?
The male swivel from Apache brings together a few practical features worth highlighting:
- steel construction
- a limited manufacturer warranty
Review the product description and specifications to confirm it matches your specific needs before placing your order.
Reviews
There are no reviews yet.
