Vented zone heating systems use room air to support combustion and exhaust their flue products to the outdoors via a single pipe. Mounts anywhere you have access to an existing flue or where you can install a vent run through the roof. A vented zone heating system makes an excellent replacement for an inefficient oil or wood stove.

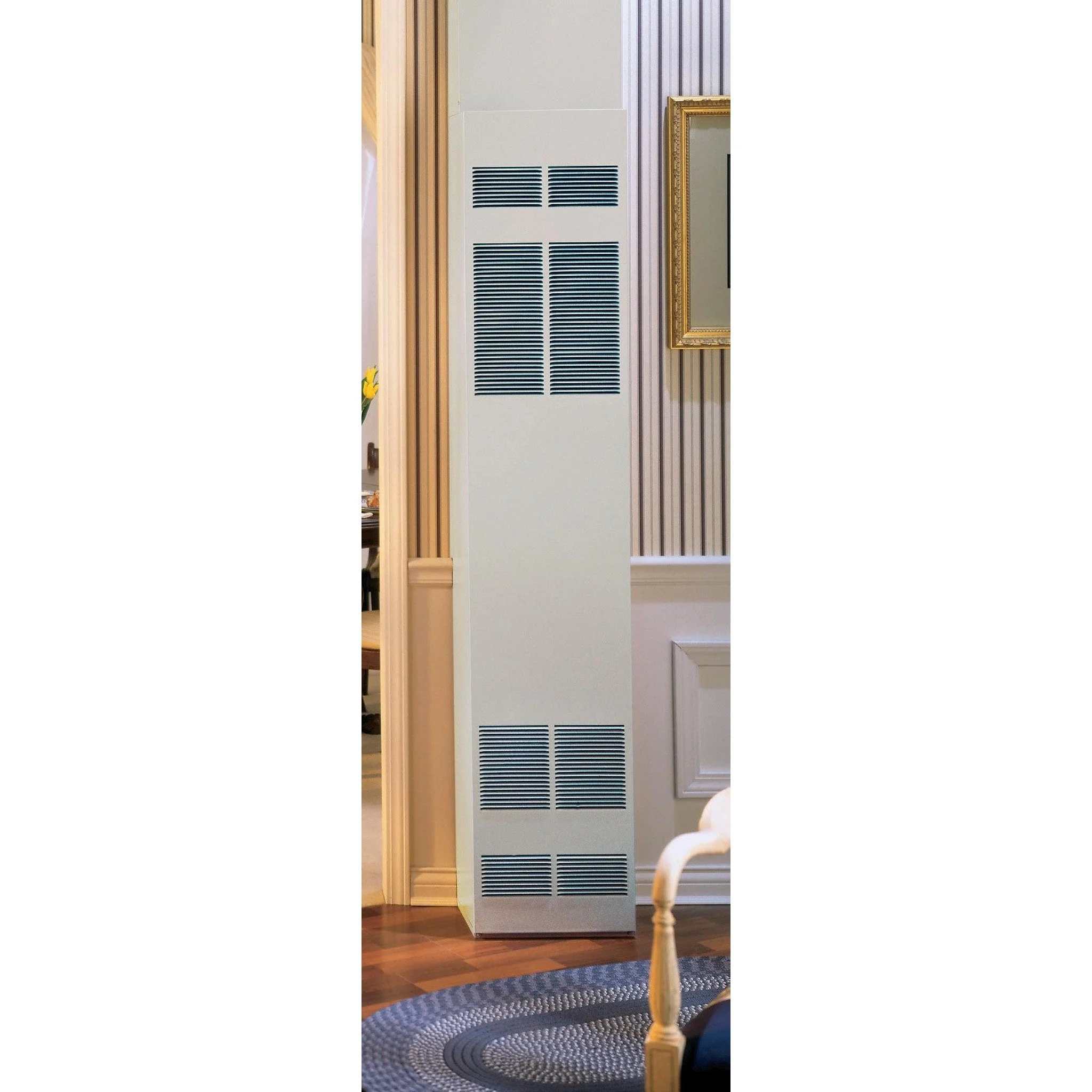

Counterflow wall furnaces circulate warmth at floor level to provide comfort at a fraction of the cost of electric heat. The front panels remove easily for cleaning and servicing. Available in standing pilot with matchless piezo ignition or state-of-the-art electronic ignition.
What’s Included
- 72″ 40,000 BTU Beige Standing Pilot, Vented Counterflow Wall Furnace
Not Included (Sold Separately)
- Wall Thermostats
- 10″ Side Outlet Kit
- 10″ Rear Outlet Kit
- Side Outlet Register
- Vent Enclosure
- Gas Conversion Kit
- Oval-to-Round Flue Adapter Kit
Features
- Made in USA
- Up to 76% A.F.U.E. efficient
- Matchless Pushbutton Piezo Ignition
- FAW40 Install on Inside or Outside Walls
- Front Panels Remove for Cleaning and Servicing
- Multi-Room Heating Capacity with Optional Outlet Kits
- FAW40 May Be Recessed Between Standard Wall Studs
- Counterflow Blower Circulates Warm Air at Floor Level
- Total Comfort for a Fraction of the Cost of Electric Heat
- Standing Pilot (saves even more energy)
Specifications
| Model |
FAW40SPPXNAT |
| Cabinet and Front Panels Color |
Beige |
| BTU Input |
40,000 |
| Blower Output, Cu. Ft./Min. |
275 CFM |
| Fuel Type |
Natural Gas |
| Control Options (Not Included) |
| Works with Manual; Toggle Switch, Thermostat; Wall Switch or Remote Control |
Yes |
| Pilot and Main Burners Include Automatic Shut-off |
Yes |
| Iron Pipe Size (N.P.T.) |
1/2″ |
| Wall to Valve Inlet |
7 3/4″ |
| Center of Heater to Center of 1/2” Inlet Elbow |
N/A |
| Floor Covering to Valve Inlet |
4″ |
| Width |
14″ |
| Depth |
10″ |
| Height |
72″ |
| Shipping Weight, lb |
110 lbs |
| Minimum Clearances to Combustibles From |
| Top (To Ceiling) |
4″ |
| Each Side (To Nearest Adjacent Sidewall) |
4″ without Register 18″ with (SOR1) |
| Bottom of Unit to Wood Floor |
Zero |
| Center of Vent Connector Opening to Combustibles |
1 3/4″ |
| Depth Unit May Be Recessed |
9 1/2″ |
