A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

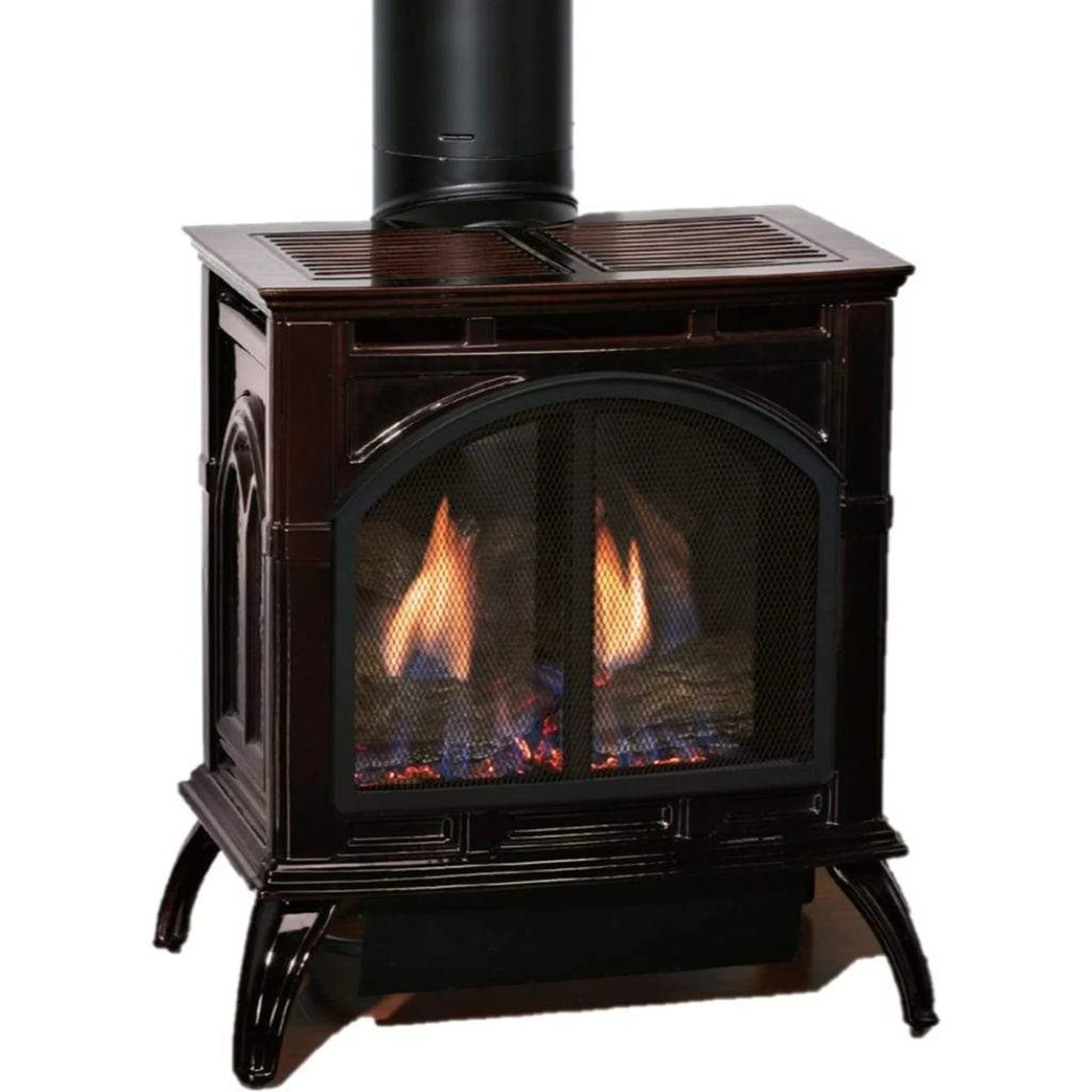

Spirit Series Cast Iron Stoves

Spirit Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.

IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.

Direct-Vent Spirit Stoves (DVP)

Direct-Vent Spirit Stoves include Empire’s Slope Glaze Burner system with expanded ember bed for extra glow. Ceramic beads within the burner swirl and tumble the gas to create naturally swirling flames that are indistinguishable from a wood fire. Topped off with the hand-painted ceramic fiber log set and glowing embers, the effect is stunningly realistic and guaranteed to keep you and your guests mesmerized for hours.

What’s Included

• Small Cast Iron Stove
• 4-Piece Log Set
• Fireplace Barrier Screen
• Slope Glaze Burner

Not Included (Sold Separately)

• 45-Degree Elbow (Required)
• Black Porcelain Liner
• Automatic Blower
• Flex Gas Line
• Control Options
• Gas Conversion Kit
• Cast Iron Stove Shelf Kit
• Optional Traditional Floor Pad
• Optional Traditional / Corner Floor Pad
• Stone Inlay Kit Required for Floor Pad

Features

• Good efficiency – 60 to 80%
• May be used as primary heat source
• Separates room air from combustion air
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage
• Good heat output with thermal transfer through the glass and air circulation
• Direct vent cast iron stoves feature Empire’s slope glaze burner system, creating extra glow from the expanded ember bed
• Ceramic beads within the burner create a swirling and tumbling of the gas
• This movement creates dancing flames that are indistinguishable from a wood fire
• Hand painted ceramic fiber log set creates an effect that is stunningly realistic
