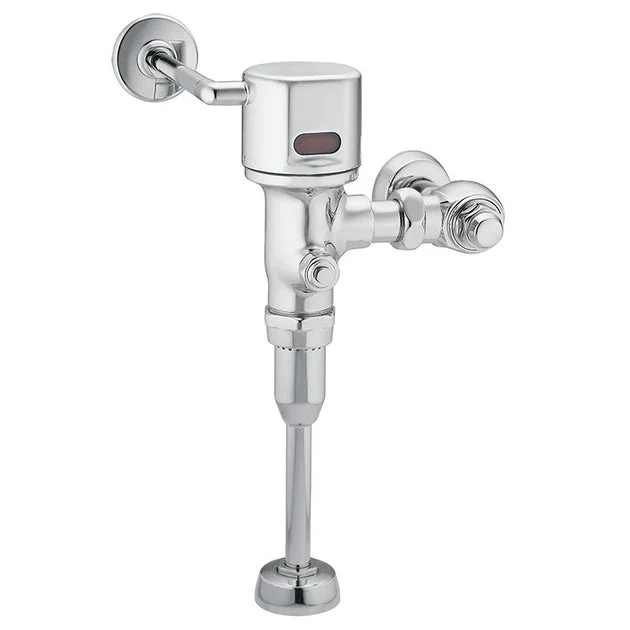

Moen Commercial’s line of M-Power sensor-operated products provide heavy-use facilities efficient and hygienic solutions to maintain sanitary environments and reduce maintenance. This AC-powered urinal flush valve allows convenient and sanitary hands-free operation. Features an exposed design with a brass angle stop valve, cast brass construction with a chrome electroplated finish, chloramine-resistant seals, a vandal-resistant angle stop and double O-ring connections, and a sensor-activated electronic flush mechanism with manual override.
The infrared sensor has an adjustable range up to 15″. The flushometer also features an optional 24-hour Sentinel Flush (factory setting is off). Compatible with the 104630 transformer which powers up to eight flush valves. Designed for used with 3/4″ top spud urinals. Measures 11″ high. Comes with a manufacturer’s 5-year limited warranty.
- 1.0 gpf flow rate
- 3/4″ top spud
- Operating pressures: 20-125 psi
- Sensor activated electronic flushometer for hands-free operation
- Manual override with push-button operation
- Self-cleaning Accuset piston technology
- High-back pressure vacuum breaker
- Adjustable installation with left or right connection
- 3/4″ IPS inlet supply
Specifications
| Model Number | 8312AC10 |
|---|---|
| Product type | Urinal |
| Size | 3/4 IN |
| Material | Brass |
| Pressure | 15 to 120 PSI |
| Length | 14-1/8 IN |
| Width | 10-1/3 IN |
| Height | 4-4/5 IN |
| Style | Transitional |
| Color family | Chrome |
| Collection | M-Power |
