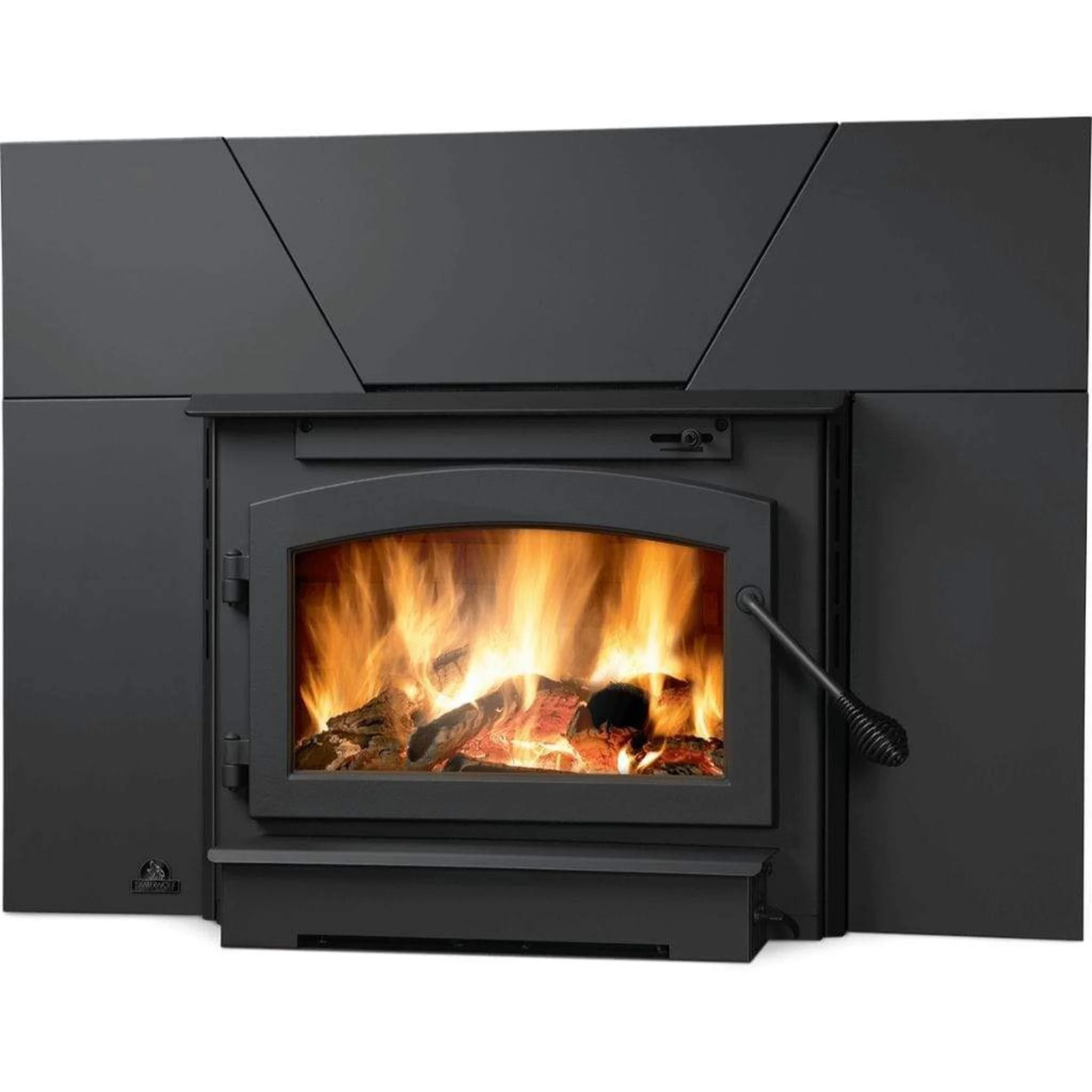

Economizer™ Wood Burning Insert
Transform your masonry fireplace into an efficient, clean-burning, and cost-effective heating source with Timberwolf’s EPI22 Wood Burning Insert. The large firebox design accommodates 18˝ logs and allows for a long eight-hour burn time.
Outstanding 86% Efficiency Rating
FEATURES
- EPA Certified 2020
- Dual blower system included
- Large ceramic glass viewing area
- Painted black cast iron door included
- Minimum fireplace opening: 25 7/8″ W x 22″ H x 14″ D
- Includes painted black flashing with 3 ½” depth adjustment for installation versatility
CA Residents: See Prop 65 WARNING.
Specifications
| Model | EPI22-1 |
| Fuel Type | Wood |
| Vent Type | Vented |
| Vent Size | 6 |
| Installation Type | Insert |
| Style | Traditional |
| Max BTU’s | 65,000 |
| Firebox capacity | 1.9 cu. ft. |
| Chamber (D.W.H) | 14 5/8″ (371mm) x 20 7/8″ (530mm) x 11 5/8″ (295mm) |
| Area heated** | 800-1800 ft2 (74m2 -167m2) |
| Burn time (hours) | 8 Hours |
| Min Depth | 14″ (356mm) |
| Max Depth | 17 1/2″ (445mm) |
| Max log size | 18″ |
| Emissions (grams per hour) | 2.25 |
| Blower kit available | Included |
Minimum Clearances to Combustibles
Options & Accessories
|
Genuine Grey Leather BBQ Gloves Genuine Grey Cowhide Leather BBQ Glove provides the user with heat protection when working with the heat from your barbecue grill thanks to the reinforced stitching, and quality fit with greater dexterity. Genuine grey leather and reinforced stitching ensure that when you are handling hot stuff, your hands remain safely cool and comfortable. |
|
|
|
Thurmalox Black Stove Paint
|
Downloads
- Download Product Brochure
- Download Product Installation Manual
- Download Product EPA Certification
- Download Product Specification Sheet
