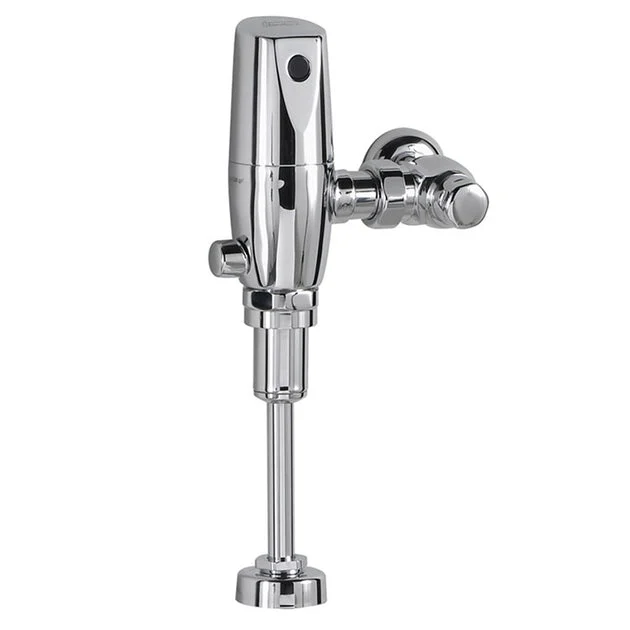

Selectronic electronic flush valves are engineered to meet the demands of high-use spaces with a design that offers water-saving operation, easy installation, and lost-cost maintenance. Designed for use with 3/4″ top spud urinals, this high-efficiency 0.5 gpf Selectronic flush valve is powered by the included factory-installed PWRX 10-year battery system which features an advanced battery and electronics to reduce the downtime and maintenance costs associated with changing batteries. Features a self-cleaning piston to prevent clogging, a mechanical override button for flushing during power outages, a fail-safe to automatically close the valve if there is a loss of water pressure, a stadium mode to conserve water during periods of heavy usage, water-resistant sensor and electronic controls, and chemical-resistant EPDM seals for extended life. An adjustable sanitary flush feature cleans the fixture and maintains the seal trap. Inlet includes a 3/4″ sweat solder, an angle stop with back flow protection, and a vandal-resistant cap. Outlet includes a 3/4″ vacuum breaker with adjustable tailpiece, spud coupling, and flange.
- 0.5 gpf
- Proximity system for hygienic hands-free operation
- Pressure compensation for accurate flush volume
- Dezincification resistant semi-red brass alloy
- Can be installed right or left-handed
Specifications
| Model Number | 6064.051.002 |
|---|---|
| Flush rate | 0.5 GPF |
| Finish | Polished Chrome |
| Spud type | Top |
| Spud size | 3/4 IN |
| Ada compliant | Yes |
| Actuation type | Sensor-Operated |
| Product type | Urinal |
| Part number | 6064.051 |
| Material | Brass |
| Inlet size | 3/4 IN |
| Outlet size | 3/4 IN |
| Height | 16-1/2 IN |
| Style | Transitional |
| Color family | Chrome |
| Collection | Selectronic |
