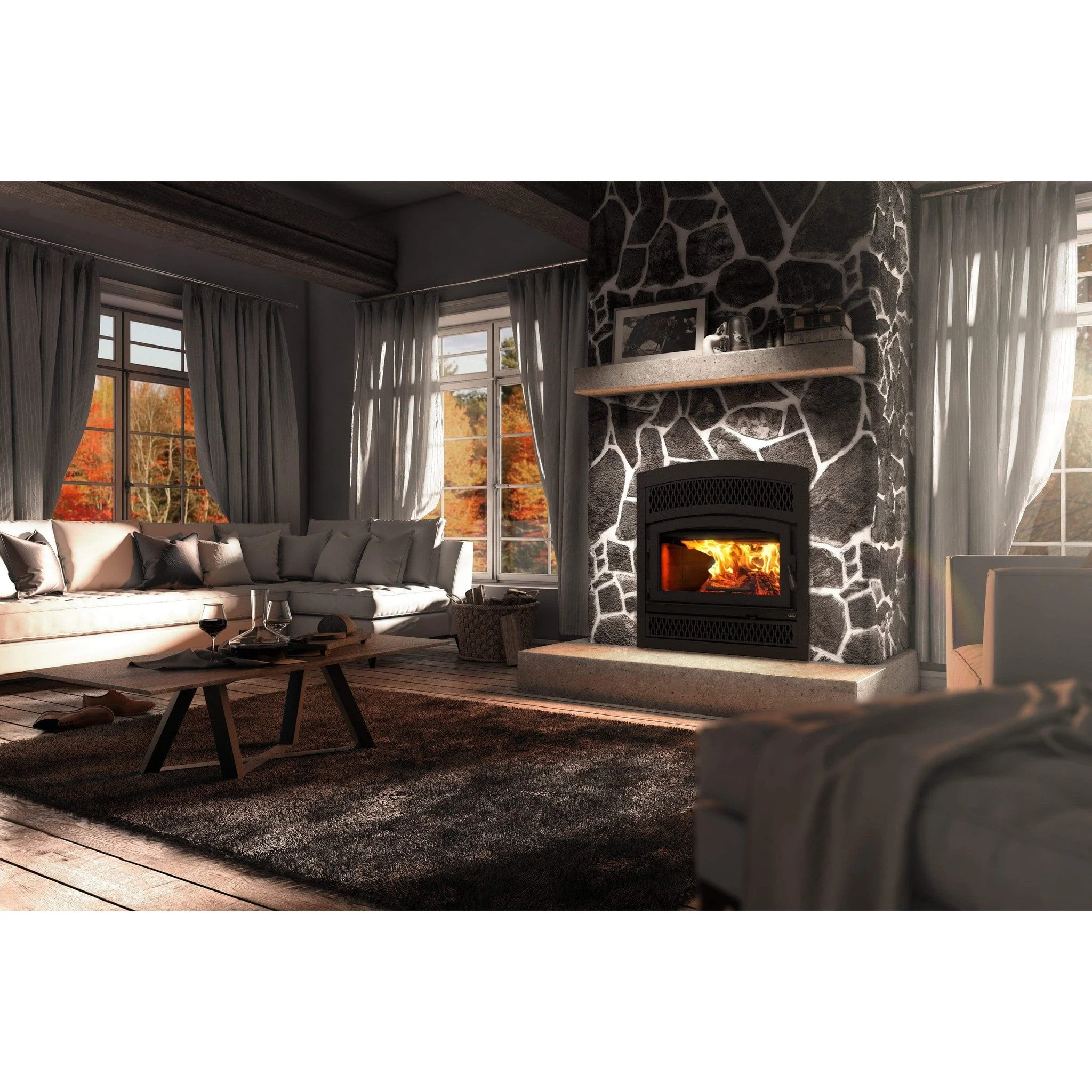

French officer and hero of the American Revolution, Lafayette was a source of inspiration for the recertification of this high-performance fireplace. Like the great general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic unit, so that it perfectly combines the new heating technology with all its elegance.
Customize your fireplace: five faceplate louvers, as well as black or brushed nickel door overlays, are available to enhance your decor. In addition to offering a distinctive look, the appliance follows the most restrictive EPA regulations, making it the fireplace of choice for the next generation of consumers who want to use wood as a renewable and clean source of heat.
What’s Included
- 38″ Wood Fireplace
- Black Door Overlay
- Black Arched Faceplate
- Classic Style Faceplate Louver
- Blower
- Fresh Air Intake Adapter
- Molded Refractory Bricks
- Cast Iron Andirons
Not Included (Sold Separately)
- Firescreen Door
- Heat Shield for Surround/Shelf
- 4″Ø Fresh Air Intake Register With Airtight Damper
- 6″Ø x 25′ Insulated Flex Pipe for Forced Air Kit
- 4″Ø x 25′ Insulated Flex Pipe for Fresh Air
- Forced Air Kit
- Traditional Gravity Kit
- Modern Gravity Kit With Adjustable Pipes
- 4″Ø x 10′ Insulated Flex Pipe for Fresh Air Intake Kit
- Glass Hearth Pad
- Fireplace Carrying Handles
Features
-
Performance Fireplaces for High Efficiency-This line offers fireplaces with eco-friendly heating with emissions below the limits imposed by EPA and the benefits of an efficient overnight burn. If needed, they can be used for ambiance with the doors open.
Specifications
| Model Number | FP10R |
| UPC | 773388188386 |
| BTU | 75,000 |
| Heating Capacity | 1,800-2,900 sq ft |
| Emissions | 1.14 g/hr |
| Firebox Size | 2.5 cu f |
| Log Length | 20” |
| Flue Pipe Diameter | 6” Class A* |
| Weight | 405 lbs |
| Overall Dimensions | 47 ⅛”H x 37 ⅞”W x 29 ⅝”D |
Appliance Performance
Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output. ()Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure. (2)The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%. (3)As measured per CSA B415.1-10 stack loss method. (4)Higher Heating Value of the fuel. (5)Lower Heating Value of the fuel. (6)Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%. (7)Optimum overall efficiency at a specific burn rate (LHV). (8)This appliance is officially tested and certified by an independent agency. (9)Carbon monoxyde. |
Approved Chimney Types
*Specific components may be required depending on the chimney manufacturer. |
Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites). |
