The Manoir is the updated version of Valcourt’s very first fireplace.
Valcourt’s fireplace doors are second to none and the Manoir is another good example of their exception.
What’s Included
- 41″ Wood Burning Fireplace

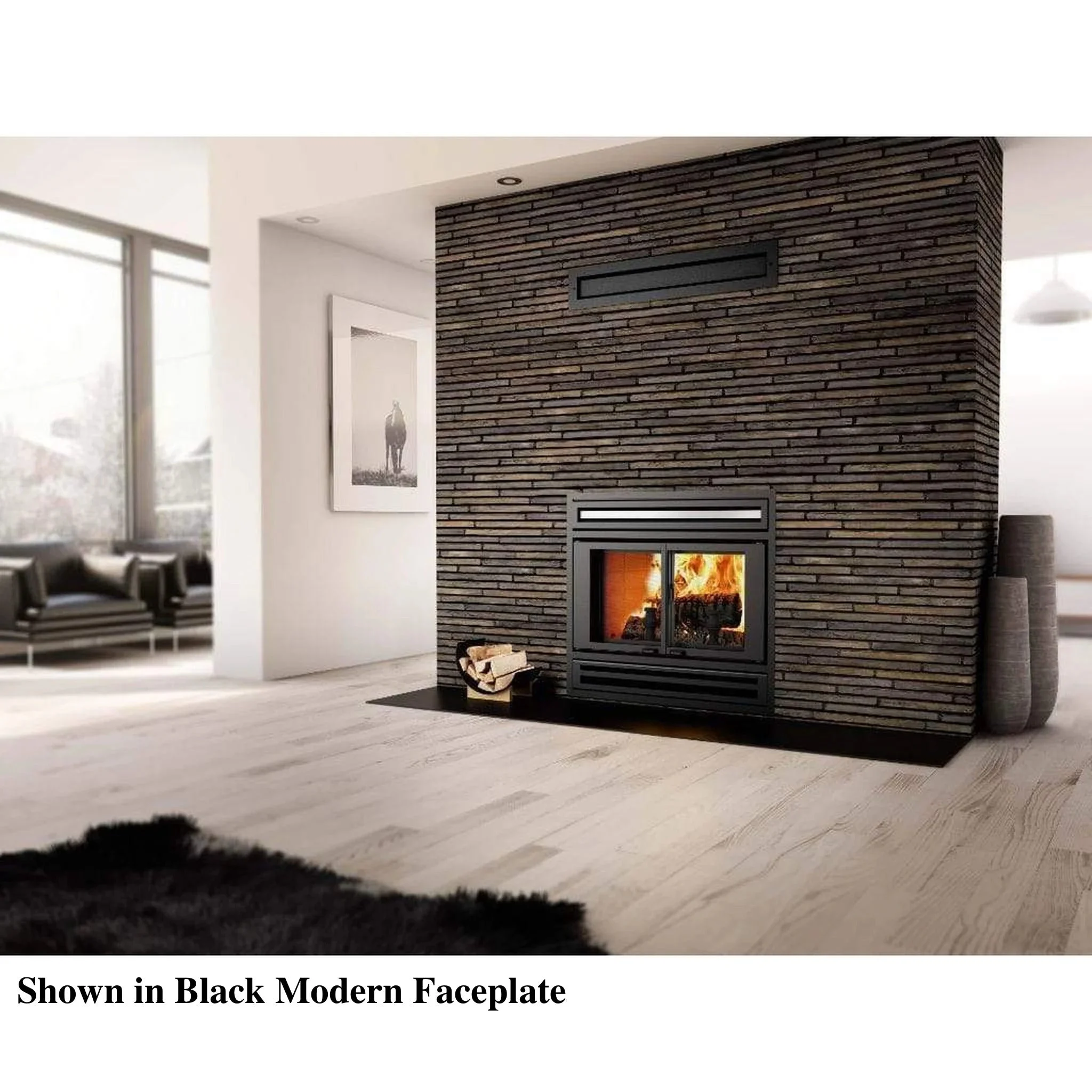

- Black Modern Faceplate Louver
- Retractable Ceramic Glass Doors
- Cast Iron Andirons
- Blower
- Fresh Air Intake Adapter
- Moulded Refractory Bricks
Not Included (Sold Separately)
- 4″Ø Fresh Air Intake Register With Airtight Damper
- 6″Ø x 25′ Insulated Flex Pipe For Forced Air Kit
- Air Kit
- Gravity Kit
- Glass Hearth Pad
Features
- The steel framed double doors with ceramic glass slide into each side of the fireplace, smoothly and easily; allowing for an exceptional view of the crackling flames.
- Thanks to the availability of two different styles of faceplates, this model will enable you to be creative with your décor.
- Moreover, you can benefit from the Manoir’s maximum heating output by using its optional blower and its two hot air distribution kits.
- All Valcourt fireplaces feature a heavy duty construction for guaranteed peace of mind. A real solid luxury that will provide years of relaxation for you and your family.
- Decorative Fireplaces for Ambiance While Being Environmentally Friendly – While giving you the ambiance and comfort of a wood fire, these fireplaces give you elegance without compromising air quality. These fireplaces qualify for Phase II of the EPA voluntary program of decorative wood-burning fireplaces which is approximately 70% cleaner than unqualified models.
Specifications
| Model Number | FP1LM |
| UPC | 773388088716 |
| Fuel Type | Dry cordwood (16″ recommended) |
| Recommended Heating Area | <1,500 sq. ft. |
| Overall Firebox Volume | 4.25 cu. ft. |
| Average particulate emissions rate | 2.9 g/kg |
| Burn Rate | >5 kg/h (>11 lb/h) |
| High-Efficiency Certified Appliance | Low Mass |
| Maximum Log Length | 20″ |
| Log Positioning | Loading over width |
| Chimney Diameter | 8″ |
| Type Of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height (Feet) | 15′ |
| Approved For A Mobile Home Installation | No |
| Shipping Weight | 520 lb (236 kg) |
| Door Type | Double, glass with steel frame |
| Glass Type | Ceramic glass |
| Glass Surface – Dimensions (Width x Height) | 29″ x 17 1/4″ |
| Glass air-wash system | NA |
| Premium quality blower included (CFM) | 176 |
| Overall Dimension (Height) | 43 5/8″ |
| Overall Dimension (Width) | 41 1/8″ |
| Overall Dimension (Depth) | 27 3/8″ |
| Door Opening – Dimension (Height) | 17 7/8″ |
| Door Opening – Dimension (Width) | 30″ |
| Firebox – Dimension (Height) | 18 5/8″ |
| Firebox – Dimension (Width) | 23 3/8″ |
| Firebox – Dimension (Depth) | 11 3/8″ |
| Moulded Refractory Bricks | Yes |
| Cast Iron Andirons | Yes |
| USA Standard (Emissions) | ASTM 2515, ASTM 2558 |
| USA Standard (Safety) | UL 127 |
| Canadian Standard (Safety) | ULC-S610 |
Approved Chimney Types
*Specific components may be required depending on the chimney manufacturer. |
Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites). |
