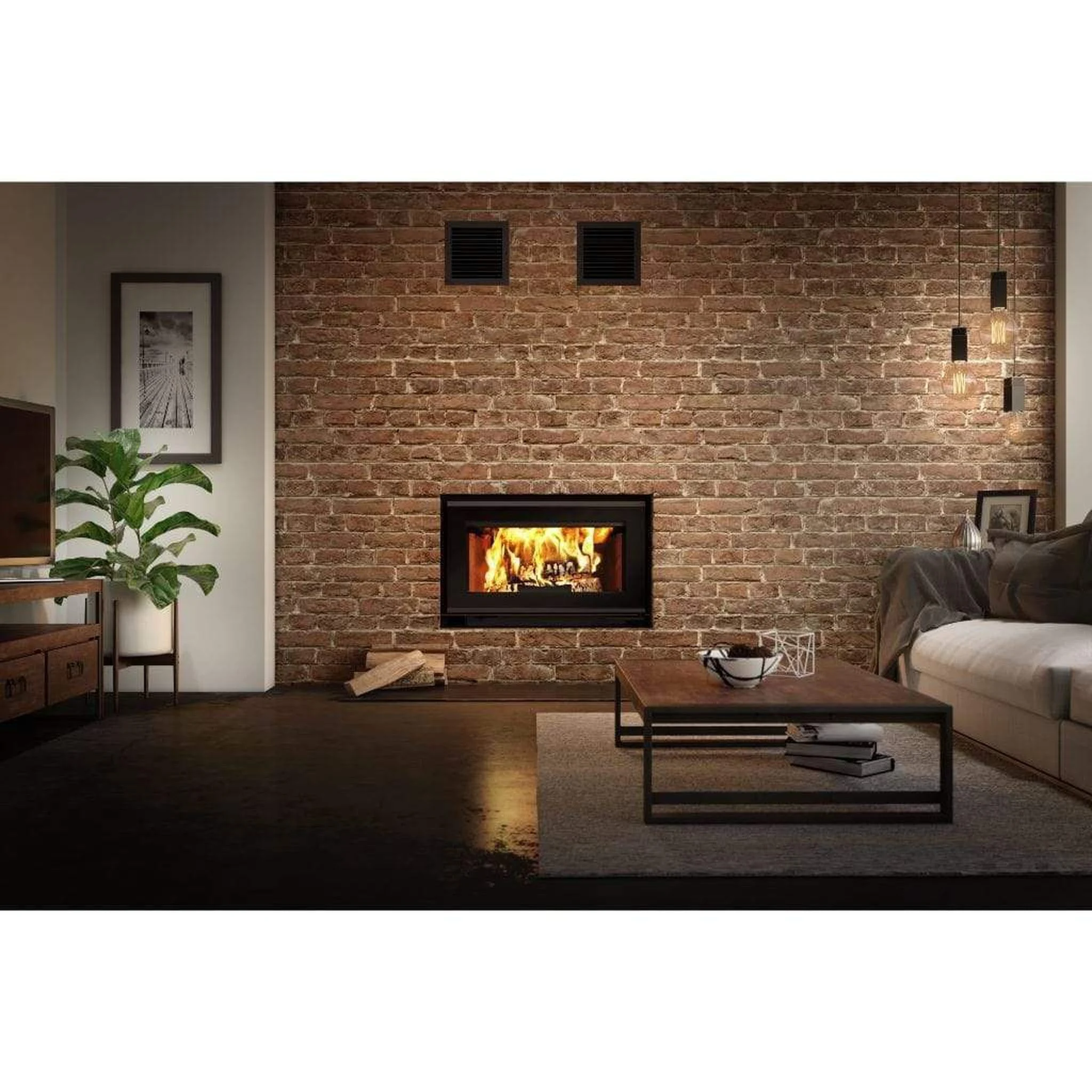

With its straight lines, simplistic shape and neutral color, Mundo II completely redefines the true nature of wood heating. Its modern design perfectly combines functionality, comfort, and safety. Environmentally-friendly, this non-catalytic fireplace is EPA certified with an incredibly low particle emissions rate of only 1.14 g/h despite its 80,000 BTU/h maximum heat output.
Its extra-large clean face glass offers a full view of the flames, entitling you to a truly exceptional show.
The hot air gravity distribution kit available with the Mundo II will allow you to harness all the power from this incredible fireplace while respecting the contemporary lines of your decor. The most serious user can also install a forced air distribution kit which will allow for better and more efficient heat transfers to rooms located further from the fireplace.
What’s Included
- 50″ Wood Fireplace
- Traditional Gravity Kit
- Moulded Refractory Bricks
- Stainless-steel secondary-air system improving gas combustion
Not Included (Sold Separately)
- Firescreen Door
- 4ӯ Fresh Air Intake Register with Airtight Damper
- 6″Ø x 25′ Insulated Flex Pipe for Forced Air Kit
- Forced Air Kit
- 4”Ø x 10′ Insulated Flex Pipe for Fresh Air Intake Kit
- Fireplace Carrying Handles
- Metallic Black Finishing Trim
Specifications
| Model Number | FP12R |
| UPC | 773388188393 |
| Combustion Technology | Non-catalytic |
| Fuel Type | Dry cordwood (16″ recommended) |
| Recommended Heating Area | 1,800 – 2,900 |
| Overall Firebox Volume | 2.5 cu. ft. |
| High-Efficiency Certified Appliance | Yes, EPA 2020 approved |
| Maximum Log Length | 20″ |
| Log Positioning | Loading over width |
| Chimney Diameter | 6″ |
| Flue Outlet Diameter | 6″ |
| Type Of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height (Feet) | 15′ |
| Baffle Type | C-Cast |
| Approved For A Mobile Home Installation | No |
| Shipping Weight | 765 lb (347 lb) |
| Door Type | Single, glass with steel frame |
| Glass Type | Ceramic glass |
| Glass Surface – Dimensions (Width x Height) | 26 1/8″ X 13 3/8″ |
| Glass air-wash system | Yes |
| Overall Dimension (Height) | 40 5/8″ |
| Overall Dimension (Width) | 50 1/4″ |
| Overall Dimension (Depth) | 27″ |
| Door Opening – Dimension (Height) | 10 3/8″ |
| Door Opening – Dimension (Width) | 25 3/8″ |
| Firebox – Dimension (Height) | 12 1/8″ |
| Firebox – Dimension (Width) | 20 3/8″ |
| Firebox – Dimension (Depth) | 12 7/8″ |
| Moulded Refractory Bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| USA Standard (Emissions) | EPA |
| Canadian Standard (Emissions) | CSA B415.1-10 |
| Usa Standard (Safety) | UL 127 |
| Canadian Standard (Safety) | ULC-S610 |
| Tested And Listed As Per Applicable Standards | By an accredited laboratory (CAN/USA) |
Appliance Performance
Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output. ()Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure. (2)The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%. (3)As measured per CSA B415.1-10 stack loss method. (4)Higher Heating Value of the fuel. (5)Lower Heating Value of the fuel. (6)Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%. (7)Optimum overall efficiency at a specific burn rate (LHV). (8)This appliance is officially tested and certified by an independent agency. (9)Carbon monoxyde. |
Approved Chimney Types
*Specific components may be required depending on the chimney manufacturer. |
Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites). |
