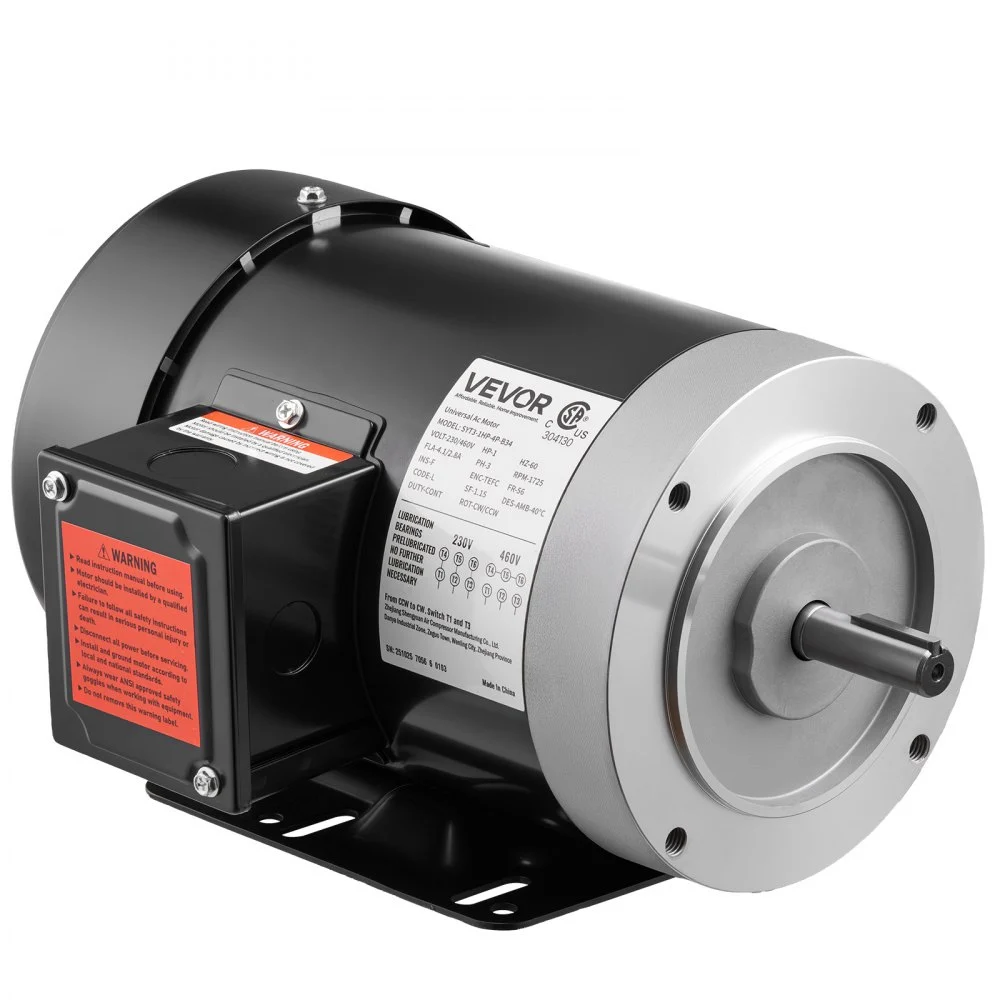

VEVOR 1 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 5/8 inch Shaft Diameter, 1.88inch Shaft Length, 4.1N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 56C Frame

Features & Details

• High Performance: 1HP high-performance motor featuring 4.1 N.m rated torque. Designed for AC 230V/460V 60Hz, three-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed
• Rugged Frame Type: The 56C frame of this electric motor includes a 5/8-inch shaft diameter, 1.88-inch shaft length, and keyway size: 0.188 inch / 4.77 mm width x 0.094 inch / 2.38 mm depth
• Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications
• Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
• Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

Product specification

• Item Model Number : SYT3-1HP-4P-B34
• Voltage / Frequency : AC 230V / 460V, 60Hz, 3-Phase Power
• Rotation Direction : CW/CCW Dual Direction
• Horsepower : 1 HP
• Rated Torque : 4.1 N.m
• Speed : 1725 RPM
