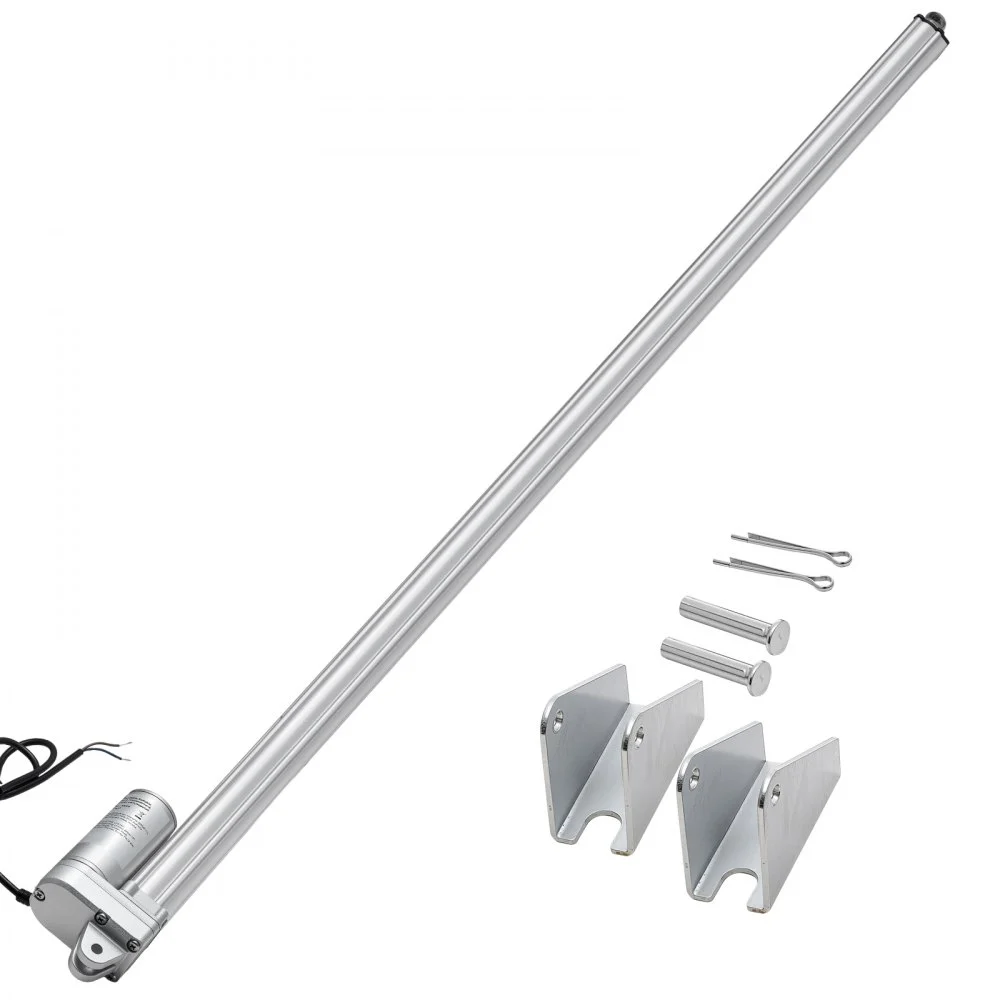

VEVOR 12V Linear Actuator, 40 Inch IP65 Waterproof Linear Actuator, 675lbs/3000N 0.2″/s Motion Actuators with Mounting Bracket for Outdoor Use

Features & Details

• IP65 Superior Protection: Rated IP65 for excellent dust and water resistance, VEVOR 12V linear actuator delivers dependable performance in outdoor environments. Suitable for door openers, lawn mowers, solar panel tracking systems, irrigation systems, etc
• Strong Torque Output: 675lbs (3000N) powerful torque output excels in various demanding tasks like agricultural machinery, construction equipment, and industrial automation, ensuring reliable performance in medium-load applications
• Extended Motion Range: Featuring an impressive 40-inch (1016mm) stroke, this 12V linear actuator offers an extended range of movement, making it ideal for applications that require greater travel range and precision
• Versatile Applications: Our linear motion actuator integrates across a wide range of applications, from furniture and home automation to industrial systems, mechanical equipment, transportation, and beyond. Empower automation at every step
• Key Specifications: Travel Speed: 0.2″/s (5 mm/s); Stroke Length: 40″ (1016 mm); Extended Length: 86″ (2184.4 mm); Retracted Length: 46″ (1168.4 mm); Current Draw: 6 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

Product specification

• Item Model Number : SY-A04B
• Input Voltage : DC 12V
• Maximum Load / Thrust : 3000N (675 lbs)
• Travel Speed : 0.2 inch/s (5 mm/s)
• Stroke Length : 40 inch / 1016 mm
• Extended Length : 86 inch / 2184.4 mm
