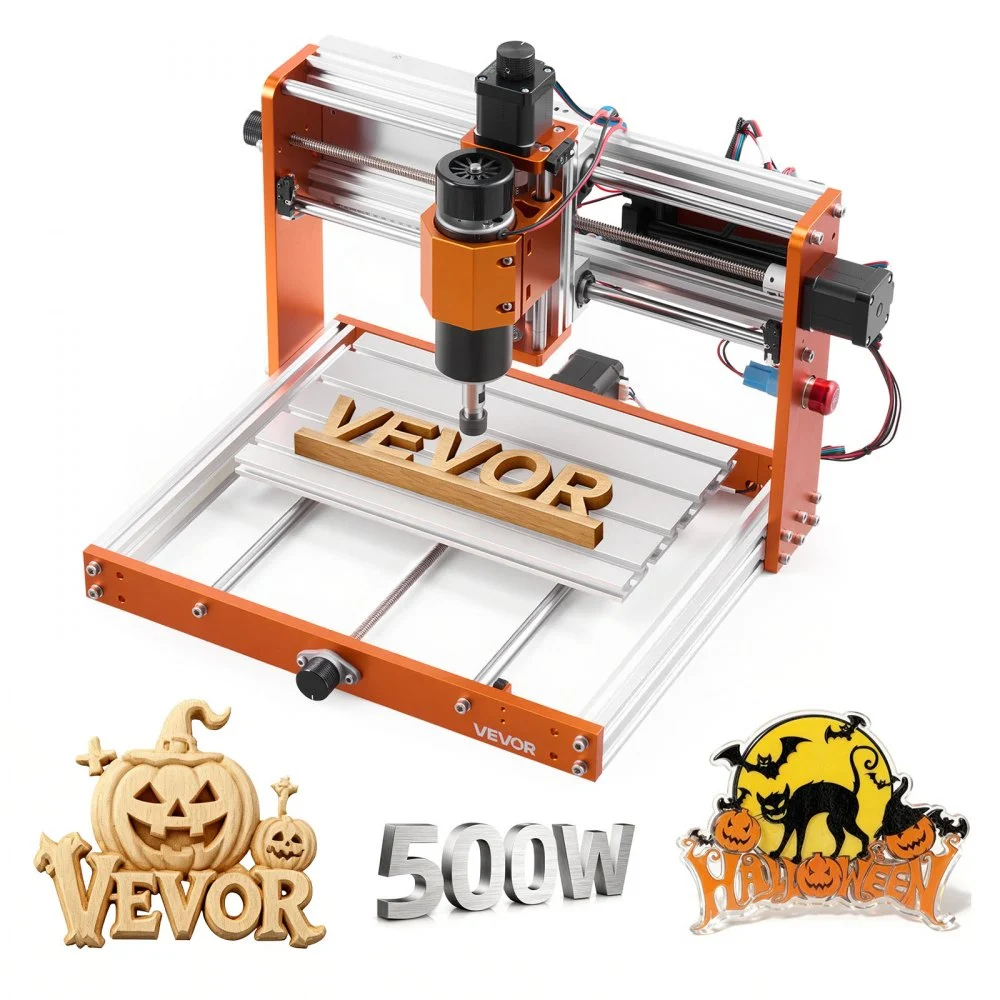

VEVOR CNC Router Machine, 500W Spindle, 3-Axis Wood Engraving Milling Machine, with 300 x 180 x 80 mm Working Area, Offline Controller, Limit Switch, E-Stop, for Wood Acrylic Plastic Carving Cutting

Features & Details

• High-Precision Engraving: The CNC router machine features an 11.81 x 7.08 x 3.15 in (300 x 180 x 80 mm) work area, expandable up to 15.75 in (400 mm) on the Y-axis. Plus a 500W spindle, aluminum alloy frame, and ≤ 0.06 mm repeatable positioning accuracy
• Extra-Long Z-Axis Stroke: Equipped with an 80 mm Z-axis stroke and 12 mm reinforced linear optical axis, this CNC wood router provides precise linear motion, enabling stable deep cutting and high-relief engraving for thick wood, large stamps, etc
• Secure & Durable Build: The spindle features a current detection protection, reducing faults and extending lifespan up to 5000 hours. The CNC router machine includes 6 limit switches, an emergency stop, and handwheels on XYZ axes for precise operation
• Wide Software Compatibility: Compatible with all software supporting GRBL f1.1 firmware. Includes Candle software, it works with Mac/Windows/Linux and supports CNC (Candle) and Easel. The 1.8-inch offline controller allows PC-free operation
• Easy Assembly, Dual-Mode Design: Pre-assembled and pre-wired main components simplify your setup. This CNC router machine effortlessly switches between cutting, carving, and marking without changing machines

Product specification

• Item Model Number : 3018-PRO MAX
• Input Voltage : AC 100-240V, 50/60Hz
• Max Spindle Power : 500W
• Effective Work Area : 11.81 x 7.08 x 3.15 in/300 x 180 x 80 mm
• Computer Connection : USB
• Offline Operation : 1.8 in Offline Controller
