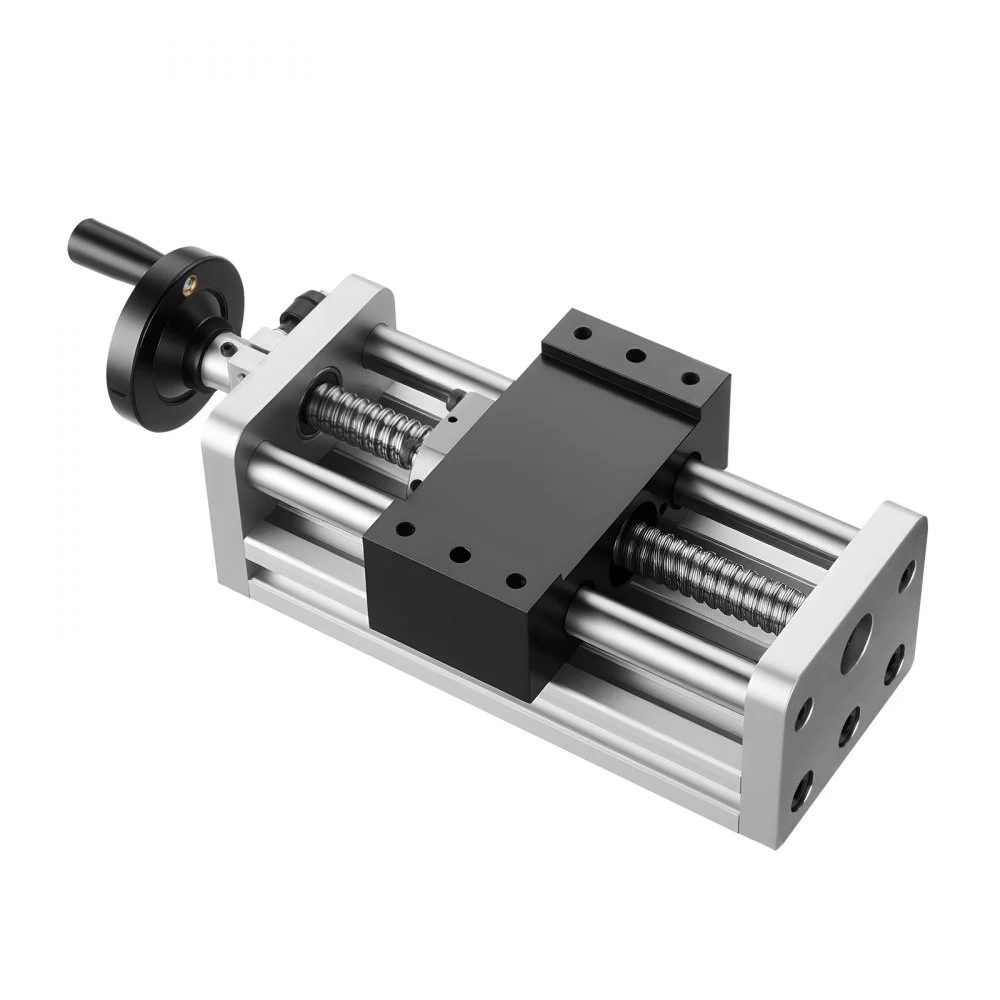

VEVOR Linear Stage Actuator, 100 mm Effective Stroke, Ball Screw CNC Linear Motion Guide Rail, Double Optical Axis, C7 High-Precision, Bearing Slide Block, Manual Handwheel, for CNC Router X Y Z Axis

Features & Details

• CNC Linear Stage Actuator: This set includes one linear stage actuator with a 100 mm effective stroke and one handwheel. Compatible with 3D printers, compact CNC machines, and industrial robots
• High-Precision Ball Screw: Features a premium ball screw, dual linear guide rails, and a ball-bearing slide block. Electroplated coating enhances long-term accuracy and durability
• Silent & Smooth Sliding: Built-in ball-bearing slide blocks deliver quiet, low-friction motion while gripping the shaft tightly for stable linear travel. Less noise, less wear, more precision—every time you move
• Reliable Load Capacity: Our CNC linear stage actuator handles both horizontal and vertical motion with ease. Supports up to 10 kg horizontally and 5 kg vertically without wobble
• Handwheel Included: Our CNC linear guide rail comes with an additional handwheel, allowing you to manual fine-tune the position

Product specification

• Item Model Number : CFJY90-1605-C-100-SL
• Material : Chrome-Plated Steel & Aluminum
• Motor RatedVoltage : DC 24–75V
• Quantity : 1 pc
• Accessories : 1 x Handwheel
