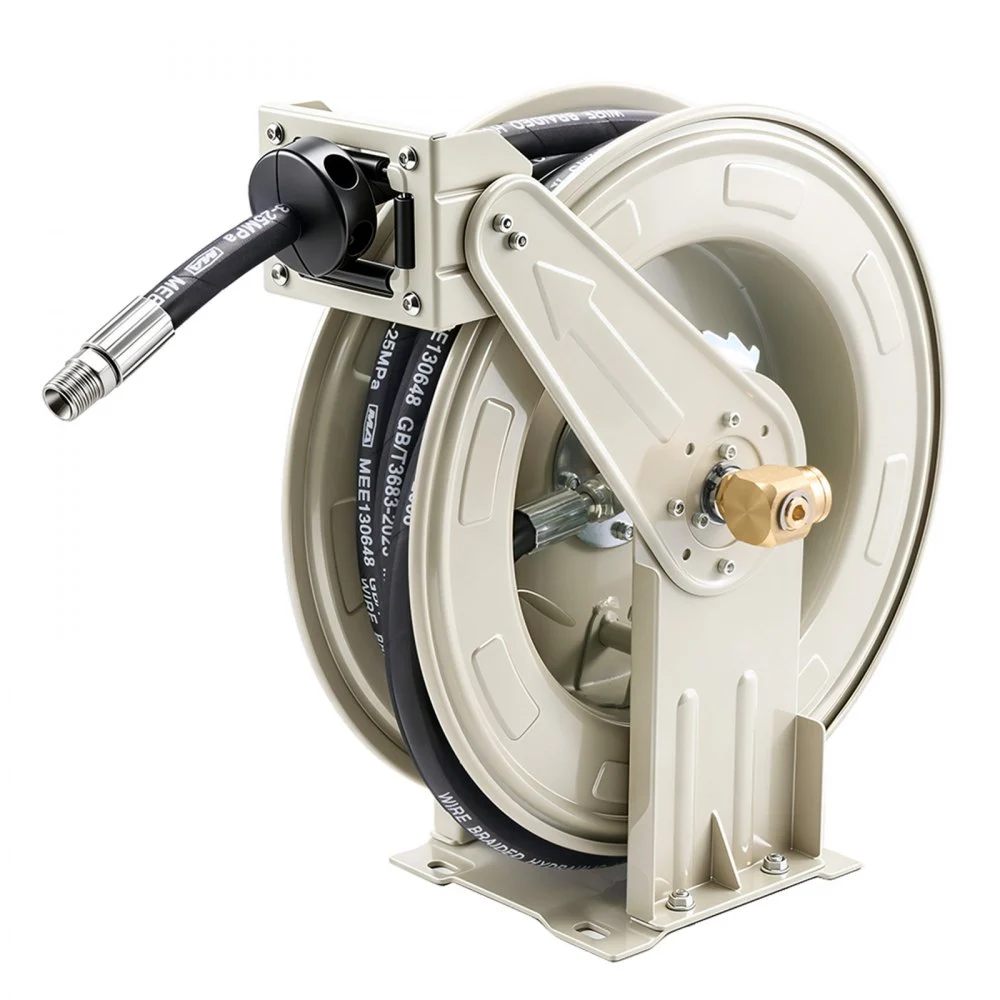

VEVOR Oil Hose Reel, 1/2 inch x 33 ft Retractable, Spring Driven Auto Swivel Rewind, Max 3625 PSI, Heavy-Duty Carbon Steel Construction with Steel Wire Braided Hose, for Engine / Gear / Hydraulic Oil

Features & Details

• Sturdy Structure: This oil hose reel uses a 1/2 in steel-wire braided hose rated for 3625 PSI and a working range of -4℉ to 176℉. It features a powder-coated thick steel drum with rolled edges and dual-sided brackets, handling high pressure, oil, and wear
• Smooth Retraction: A manganese steel spring enables controlled rewinding. Padded stops and roller guides reduce wear, while the hose stopper locks at any length and the adjustable arm allows flexible positioning
• Precise Oil Delivery: The retractable oil hose reel features a 1/2 in FNPT brass inlet and a 1/2 in MNPT chrome-plated steel outlet. The threaded fittings minimize leaks and the thread seal tape is included for easy installation
• Wide Applications: This oil reel works with engine oil, gear oil, and hydraulic oil. It is suitable for auto repair shops, fleet maintenance, construction equipment, and factory machinery
• Convenient Operation: Our oil reel with hose features a ratchet spring system, locking the hose when pulled out and retracting with a light tug. The powder-coated steel base adds stability, and threaded fittings ensure a secure connection

Product specification

• Item Model Number : 1224BT-100-11
• Suitable Fluids : Motor Oil, Gear Oil, Hydraulic Oil, Petroleum
• Hose Diameter (Inner x Outer) : 1/2 x 13/16 in / Φ12.7 x Φ20.5 mm
• Hose Length : 33 ft / 9900 mm
• Hose Material : SAE 100R1AT, Steel Wire Braided Hose
• Maximum Pressure : 3625PSI / 25MPa / 250Bar
