Features & Details

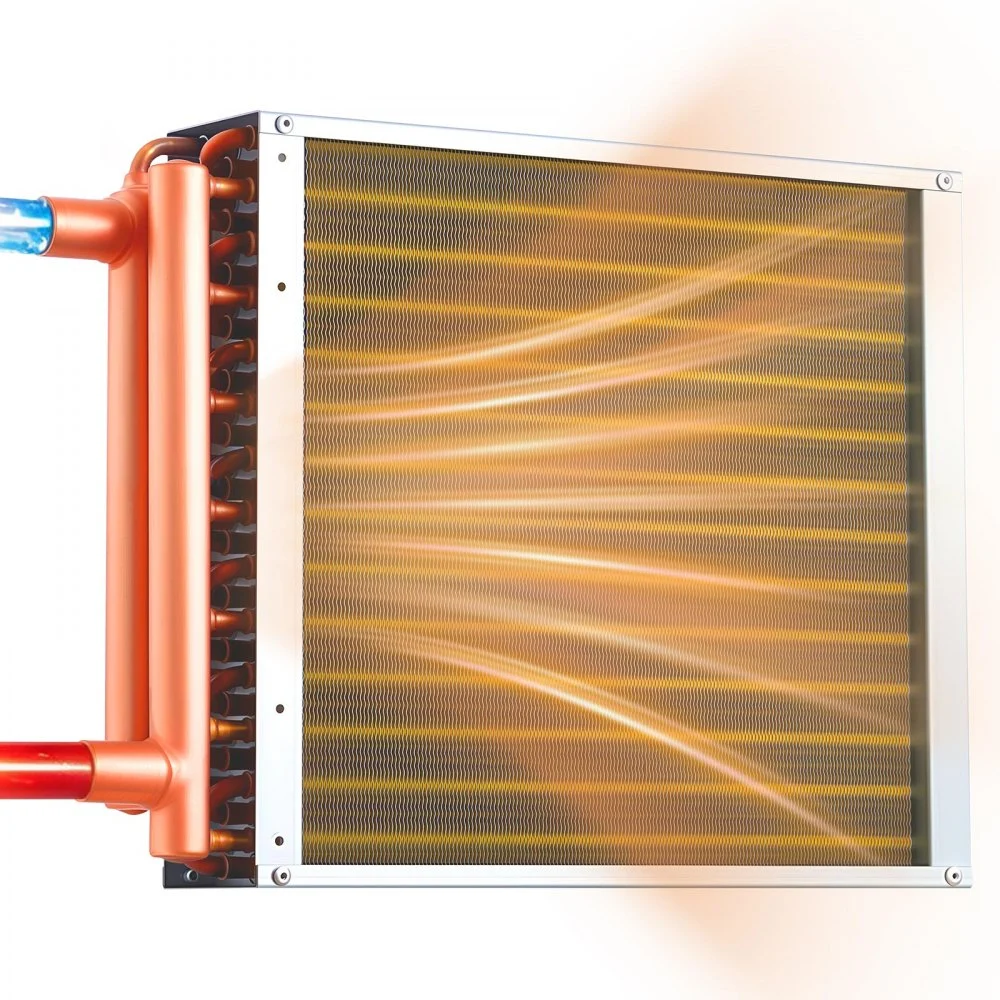

- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 65k BTU/h
- Large Heat Transfer Area: This heat exchanger coil features a 14 x 14 in effective heat transfer area with 169 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications
- Solid and Long-Lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F
- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems
Product specification
- Item Model Number : C14×14
- Heat Capacity : ≥65k BTU/h
- Plate Area : 14 x 14 in / 356 x 356 mm
- Number of Fins : 169
- Max Working Pressure : 2.5 MPa / 362.6 psi
- Port Size : 1.1 x 1.4 in / 28.6 x 35 mm
